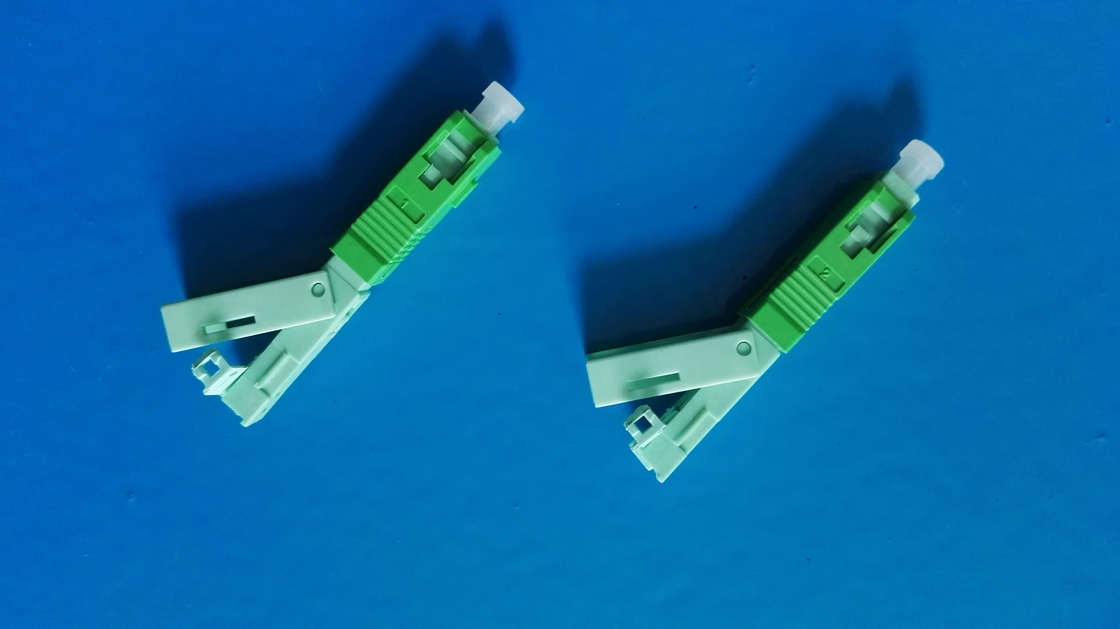

45dB OM1 OM2 SC PC Connector 50mm SC APC Quick Connector

Basic Information
Place of Origin: Shenzhen,China
Brand Name: OPTICKING
Certification: CE FCC ROHS
Minimum Order Quantity: 500
Packaging Details: plastic bag
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1500000Piece/Pieces per Month
Detail Information
Product Name: SC Connector Fast Connector Fiber Mode: 62.5/125µm OM1, 50/125µm OM2
Dimension: 50mm Return Loss: ≥45dB
Operating Temperature: -40 To 75°C (-40 To 167°F)
High Light:

OM1 OM2 SC PC Connector

,

50mm SC APC quick connector

,

45dB SC PC Connector


Product Description

SC/APC SC/PC Connector Fast Connector for FTTH

Applicable cable type:

2.0mm or 3.0mm round cable
1.6mm x 2.0mm or 2.0mm x 3.0mm flat cable

Applicable cable type:

0.9mm round cable

Features

Precise Fiber Alignment achieved by In-Ferrule Fiber Interconnection

The embedded fiber and the inserted fiber are mated inside the ceramic ferrule of field installable connector, with an accuracy of 1.0µm. The C-slot design realizes a very precise fiber alignment, and has strong adaptability for different outer diameter of embedded fiber and inserted fiber.


Exceptional Environmental & Mechanical Properties

Traditional field installable connectors use plastic V-groove as the vehicle for interconnecting two fibers. Our FICs use ceramic ferrule, whose the material has excellent compatibility with glass fiber and low thermal expansion coefficient, over a wide operating range (-40°C to 85°C). Compared with plastic, ceramic is more rigid, has stronger mechanical strength, and will not deform.


Matching Gel will not be Contaminated or Evaporate

Since the interconnection of two fibers is realized inside the ceramic ferrule, there is no risk of contamination or evaporation of matching gel.


Fast & Simple Assembly Procedure

Our field installable connectors are easy to be assembled by using a dedicated tool. Besides, the fiber insertion is very smooth, since the ferrule’s entry funnel will guide the fiber move forward easily.
