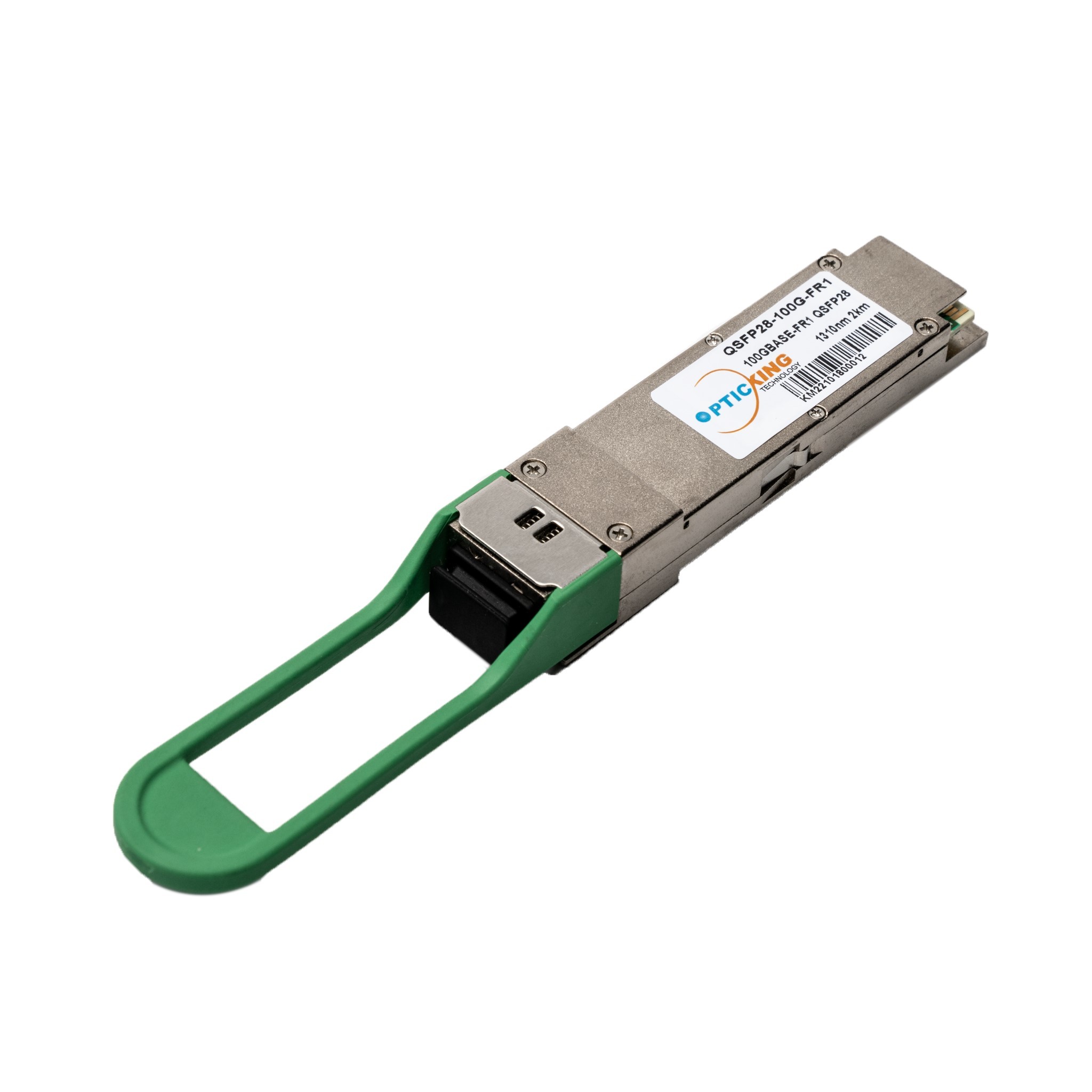

Name: SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module
Brand: OPTICKING
SKU: KQSF0A-FR31SL00C
Price: 1 USD
Availability: InStock
Rating: 4.8 (103 reviews)

Detail Information

Supply Voltage:	3.3V	Power:	-3.1~4dBm
Data Rate:	100G	Wavelength:	1310nm
Transmission:	2km	Fiber Type:	SM
DDM:	Yes
High Light:	SM Fiber 100G QSFP28 , 2km 100G FR1 , 1310nm QSFP28 FR1

Product Description

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module

Optical QSFP28 100G FR1 Transceiver 2km 1310nm Optical Module

Product Feature

1. Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a

2. Compliant with IEEE802.3cu D3.2 100GBASE- FR1

3. High speed I/O electrical interface (CAUI-4)

4. Single 3.3V Supply Voltage

5. Maximum power consumption 4W

6. 0-70 ºC Case Operating Temperature

7. 1311nm EML laser and PIN Receiver

8. Hermetically sealed TO Based design

9. QSFP28 MSA package with duplex LC connector

10. Two Wire Serial Interface with Digital Diagnostic Monitoring

11. KP4 FEC termination inside module

12. Supporting 2km reach of single mode fiber

13. Complies with EU Directive 2011/65/EU (RoHS compliant)

14. Class 1 Laser

Applications

Data Center Interconnect
100G Ethernet

Ordering Information

Product Number

Wavelength

Data rate

Distance

TX Power

RX Sens

DDM

KQSF0A-DR31SL00C

1310nm

100Gb/s

2km

-3.1~4dBm

<-7.1dBm

EML

YES

Tag:

Place of Origin:	China
Brand Name:	OPTICKING
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	KQSF0A-FR31SL00C

Minimum Order Quantity:	1000
Packaging Details:	plastic bag
Delivery Time:	Within 1-8 working days after PO confirmed
Supply Ability:	15000Piece/Pieces per Month
