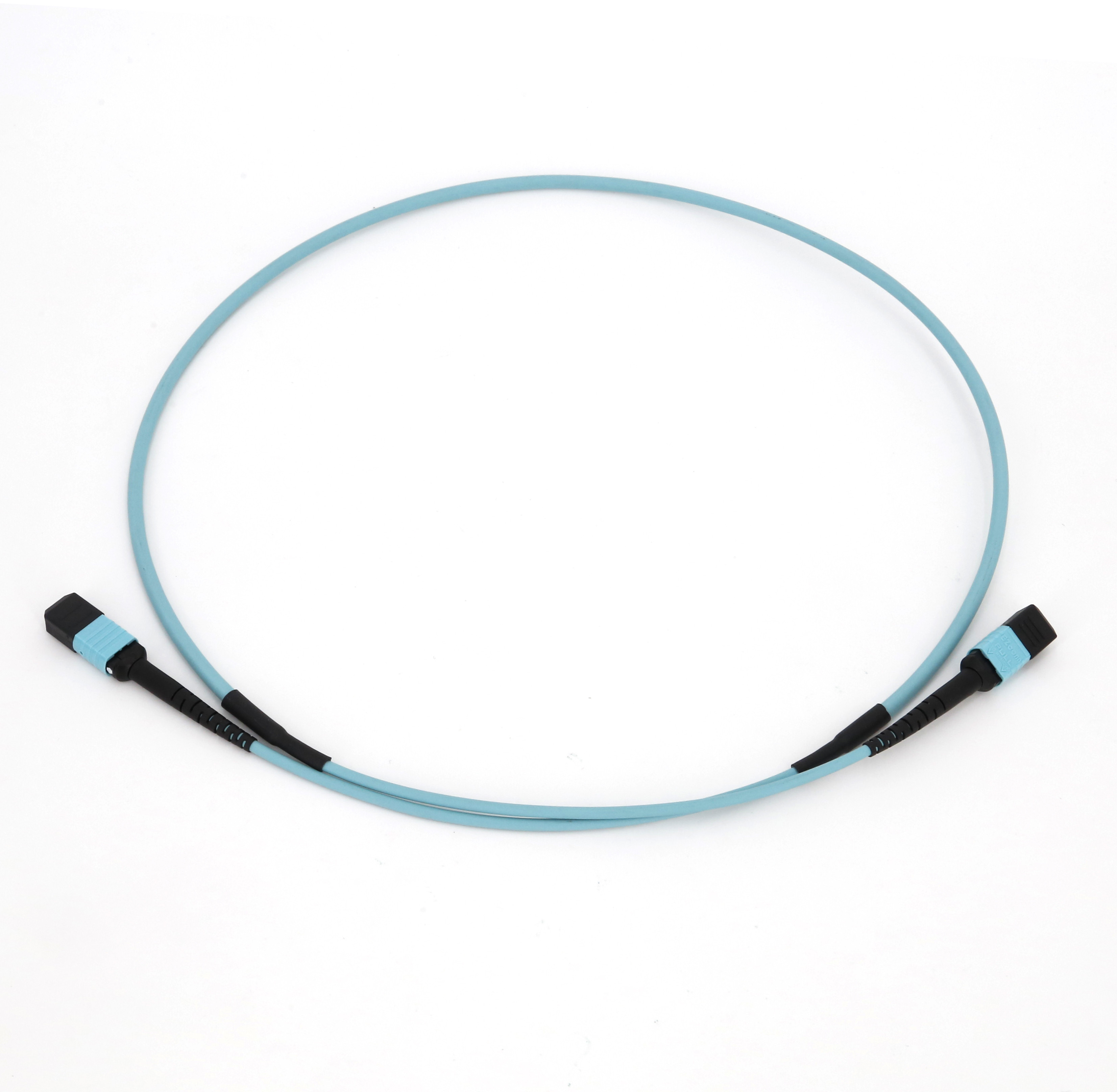

High Speed 8 12 24 48 Core MPO MTP Fiber Patch Cable For Data Center

High Speed 8 12 24 48 Core MPO MTP Fiber Patch Cable For Data Center

High Speed 8 12 24 48 Core MPO/MTP Patch Cables for Data Center

Description

      The OPTICKING MTP/MPO patch cables are multi-fiber cables using the MTP/MPO connectors. Each cable has a Male or Female MTP/MPO connector on each end. With highly integrated design and manufacturing capability, Opticking provides customized MTP/MPO patch cables which are 100% tested to deliver optimal performance and reliability.

Features

1. Polarity available in Type A, Type B, Type C, Type R
2. Insertion loss type available in Standard, Elite / Low Loss
3. Fiber count available in 8, 12, 24, 48
4. MTP/MPO connector type available in Male, Female, Male to Female
5. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
6. Cable jacket type available in OFNR, LSZH, OFNP
7. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
8. Cable length available in 1 to 999 meters
9. Cable type available in round, ribbon
10. Improve and simplify fiber routing, decrease fiber management space
11. Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS

Applications

1. Data Center Interconnect
2. High-Density Cross Connect
3. Backbone Installations
4. elecommunication Networks
5. Broadband/CATV Networks
6. Test Labs
7. LAN/WAN Premises
